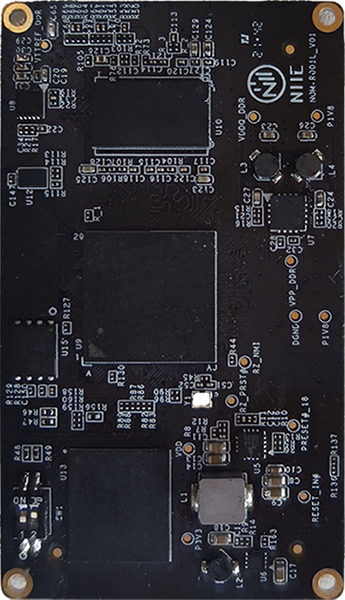

NOM-R001L

The NOM-R001L platform based on the dual core A55 medium computing power developed by our company has two 1.2GHz A55 performance ARM64 cores, equipped with 2GB DDR4 high-speed storage, which can achieve the collection of various complex algorithms. At the same time, it has rich MIPI DSI and HDMI display interfaces, which can perfectly display the QT interface without affecting motion control performance. It is the best choice for welding industrial robots, small and medium-sized collaborative robots, and display control integrated CNC machines, It also has non isolated CPU 0 and isolated CPU 1, integrating high priority hard real-time control and complex algorithms.


NOMSuccession
Apply for prototype
Basic parameters
NOM-R001L Hardware parameters

Peripheral

Parameter

Standard 100 Gigabit Ethernet interface

2*Supports 100Mb/10Mb

Standard Gigabit Ethernet interface

2*Supports 1000Mb/100Mb/10Mb

PWM

3*10MHz@5V

Encoder

2*10KHz@3.3V

Commissioning port

1*console

Serial communication

2*RS485、2*RS232

USB

2*USB2.0

DI

8* DI@24V

DIO

8* DIO@24V

SPI

SPI

CAN

2*CAN

HDMI

1920*1080@60fps


NOM-R001L Performance parameter

◆ 24V voltage input DC interface;
◆ Dual 100 megabyte network port;
-Support 10Mb and 100Mb networks;
◆ Dual gigabit network ports;
-Supports 10Mb, 100Mb, and 1000Mb networks;
-Supports EtherCAT;
◆ Standard 1 * 3PIN 2.54mm spacing straight needle console port;
◆ Standard 2-way 1 * 3PIN 2.54mm spacing straight pin encoder;
◆ Standard one way 1 * 4PIN 2.54mm spacing straight pin SPI;
◆ Two-way TYPE-A type USB 2.0 interface;
◆ TF expansion card slot;
◆ Standard HDMI interface;
◆ CSI interface;
◆ 2x8 double row socket with 3.5 spacing seat;
- RS485*2;
- RS232*2;
-CAN-FD * 2, supporting up to 10Mbps;
◆ 2x5 double row socket with 3.5 spacing seat;
-Three PWM signal outputs;
-Eight channels of DI signal input;
-Eight ADC signal inputs;
-Eight-way DIO signal;

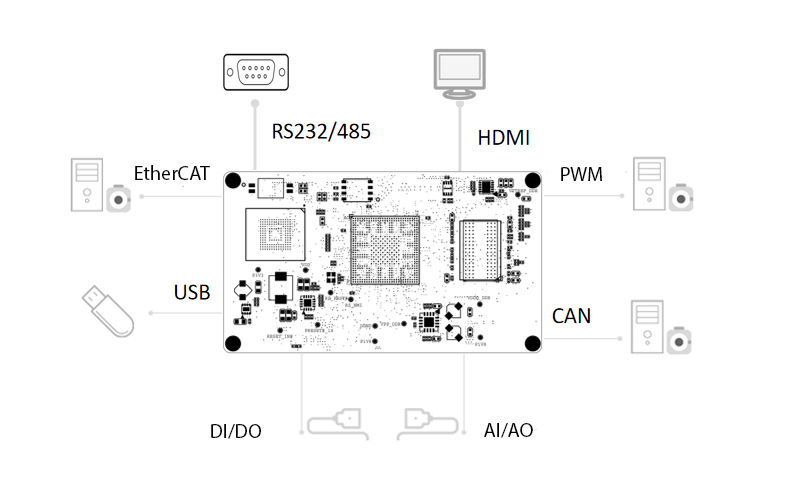

Topology Map
